Nelissen – Products - BravoBack
|Clay bricks||210x65x100 mm||58 tk/m²|
|Brick slips||210x65x20 mm||58 tk/m²|
|Brick slip corners||210x65x20x100 mm|
|Euro CE (EN 771-1)|
|Belgium BENOR (PTV 23-002)|
|Resilience category||Class T2|
|Scope category||Class R1|

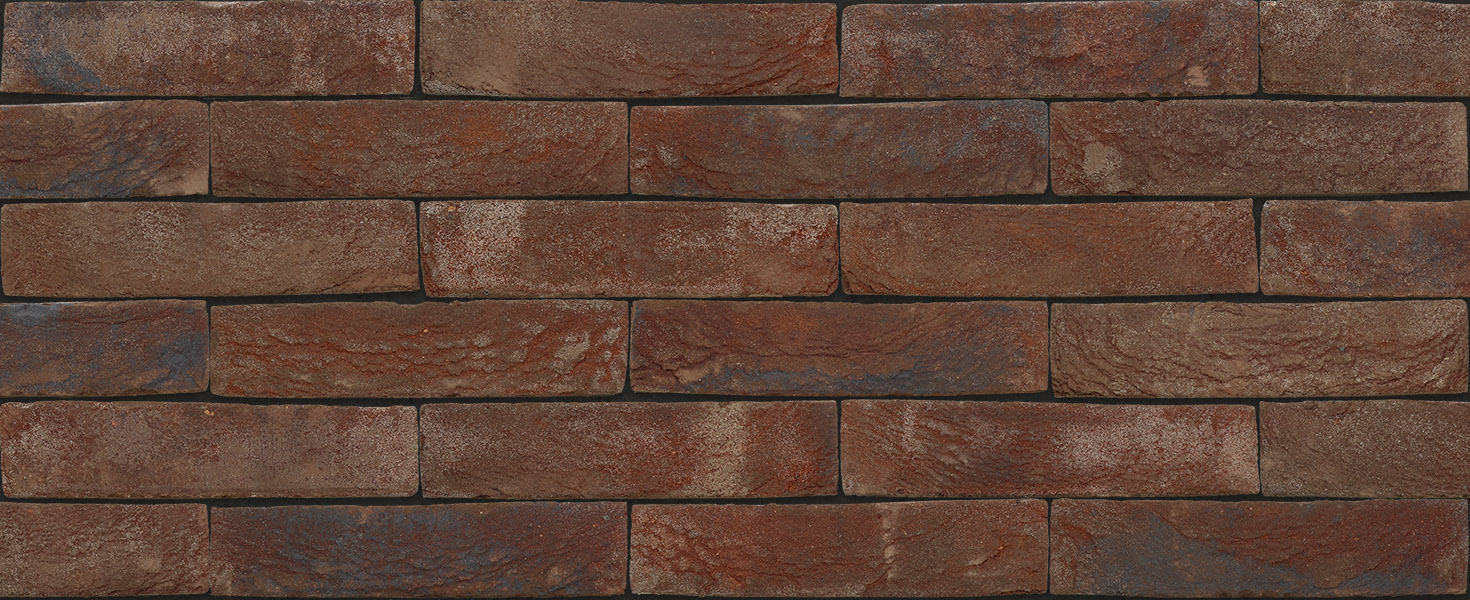

Congratulations for this unique brick.his hand-moulded facing brick is made from Limburger löss clay from the Kesselt tableland in the valley of the Meuse and revalue with raw materials from the Volcanic Eifel.
The facade bricks (non-perforated) have five sand covered sides and one oblong groove. The structure looks rugged with fine and irregular grooves in the sandy surface. The baking process takes place in a gas-heated tunnel oven under slightly reduced atmosphere.
By the homogeneous mixture of manganese dioxide with grey-red baking Löss loam, Nelissen Brickworks obtains a red-brown brick. The brick has a surface with fine-grained sand and colours that vary from orange-brown to purple-brown brick with blue shades.
0,15 N/mm² if jointed
0,3 N/mm² thin layer cooled
|Reaction to fire||Euro class A1|
|Water absorption||< 13%|
|Primer for water absorption||3 kg/m².min|
|Water evaporation rate||5/10 (table value EN 1745)s|
|Total density||1600 kg/m³, D2|
|Purity||1750 kg/m³, D2|
|Freezing / Thawing Resistor||
F2, cold class D, respectively, BRL 1007
Highly frost resistant according to PTV 23-002
|Characteristic compression strength||30 N/mm² according to PTV 23-002|
